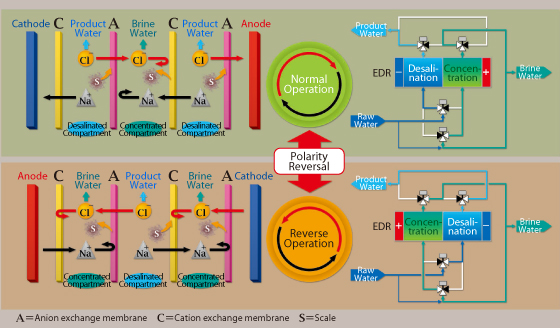

1	Scale Deposit can be prevented Solid scale precipitated on ion exchange membranes while operating the system can be prevented by periodically changing polarity.
2	High Water Recovery Raw water can be recovered as product water in higher ratio by its unique process and setting up an appropriate condition of polarity reversal to meet each raw water quality compared to that in the conventional ED system.
3	Saving Power Consumption The EDR process can be operated in low power consumption. Because ion exchange membranes to be installed in the EDR are developed for salt production process which specially requires low electric resistance. In addition, each component of Electrodialyzer is designed to give low pressure drop while in operation and other equipments of the system are also designed to provide less power consumption.
4	It is a safety equipment with use of Ion Exchange Membrane called NEOSEPTA based on over 40 years of application for salt manufacturing.
5	Electrodes for the EDR are made by special material to give long life time. Quantity of chemicals for maintenance work is less compared to that of the conventional ED.
6	High SiO2 content water can be treated without forming precipitation on ion exchange membranes.
7	Desalination ratio of raw water can be easily controlled.
8	The EDR is operated in low pressure, noise and vibration to keep friendly environment.

Condition	Underground Water: Total hardness - 320 mg/L Product Water: Total hardness – 56 mg/L		Process flow	Underground Water → Filtration → EDR → Product Water (to be used for drinking water)
		Unit	Underground Water		Product Water
Sodium Ion (Na)		mg/L	34		24
Chloride Ion (Cl)		mg/L	56		11
Total Hardness		mg/L	320		56
Nitrate Ion		mg/L	6.1		1.8
Electric Conductivity		µS/cm	750		220
Power Consumption		Kwh/m3	-		0.30

Condition	Underground Water: Total hardness - 567 mg/L Product Water: Total hardness – 40 mg/L		Process flow	Underground Water → Filtration → EDR → Product Water (to be distributed)
		Unit	Underground Water		Product Water
Sodium Ion (Na)		mg/L	236		42
Chloride Ion (Cl)		mg/L	587		40
Total Hardness		mg/L	567		40
Total Dissolved Solids		mg/L	1500		180
Electric Conductivity		µS/cm	2340		307
Power Consumption		Kwh/m3	-		0.47
